Placement errors despite complete barcode checks?
If components are re-reeled by the distributor to customer specifications or supplied as customer-provided parts in bags, it is often not clear whether the component values are correct. The delivery is labelled – but does the label really match the values of the contents? Because components are small or unmarked, their values often cannot be recognised visually!
A mistake can be costly in terms of both time and money. New (correct) components have to be procured, and the boards already assembled have to be repaired manually at great effort.
This is where LCR measurement with EFA Inspection can help!
LCR measurement of component values with EFA Inspection takes little time, prevents placement errors and gives you the certainty that the right components are being placed!
Why LCR measurement with EFA Inspection?
- Read nominal values automatically – EFA Inspection recognises the nominal and tolerance values automatically from the customer data!
- Assess measured values automatically – The measured values are automatically compared with the nominal and tolerance values.
- Create a report of the measured values – An inspection report with all the necessary values is created in a few seconds.

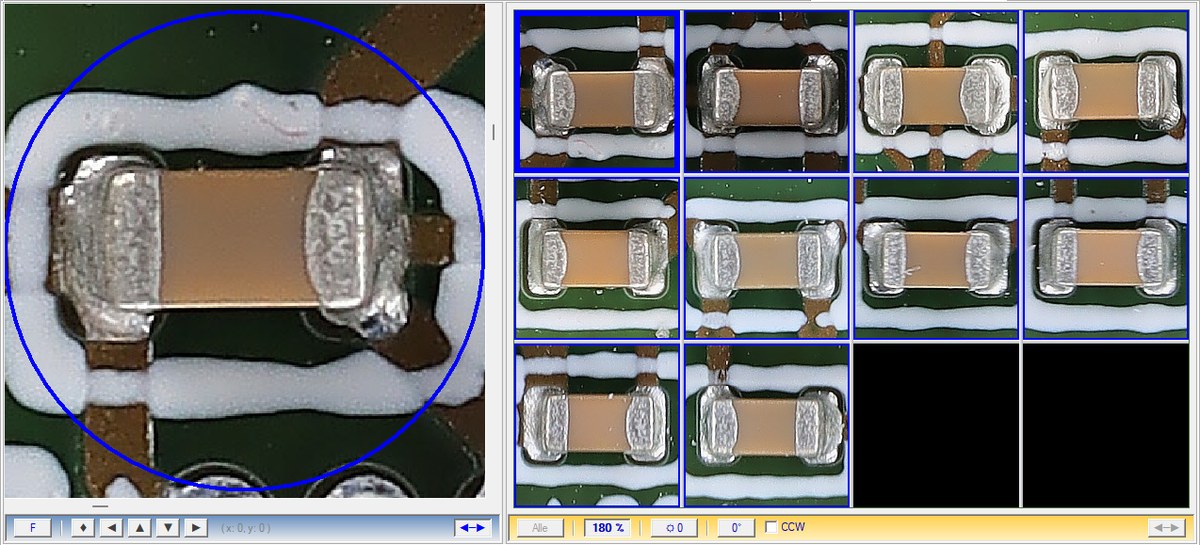

- Measurement by part number – If required, just one component per part number can be measured – saving even more time!
- Proven in practice – LCR measurement with EFA Inspection is already in use in many places!
The operator no longer has to calculate whether the measured value is within the tolerance range – EFA does that automatically!
A quick LCR measurement of component values with EFA Inspection gives you the certainty that, for example, customer-provided parts are correct!
Highlights of LCR measurement with EFA Inspection
- Recognise component values – The nominal and tolerance values can be read automatically from the customer BoM.
- Check measured values – Automatic assessment of whether the measured values are within the nominal range.
- Save results – The measured values are logged together with the nominal values.
What our users say
LCR measurement with EFA Inspection saves a considerable amount of time – and has noticeably improved our quality!
